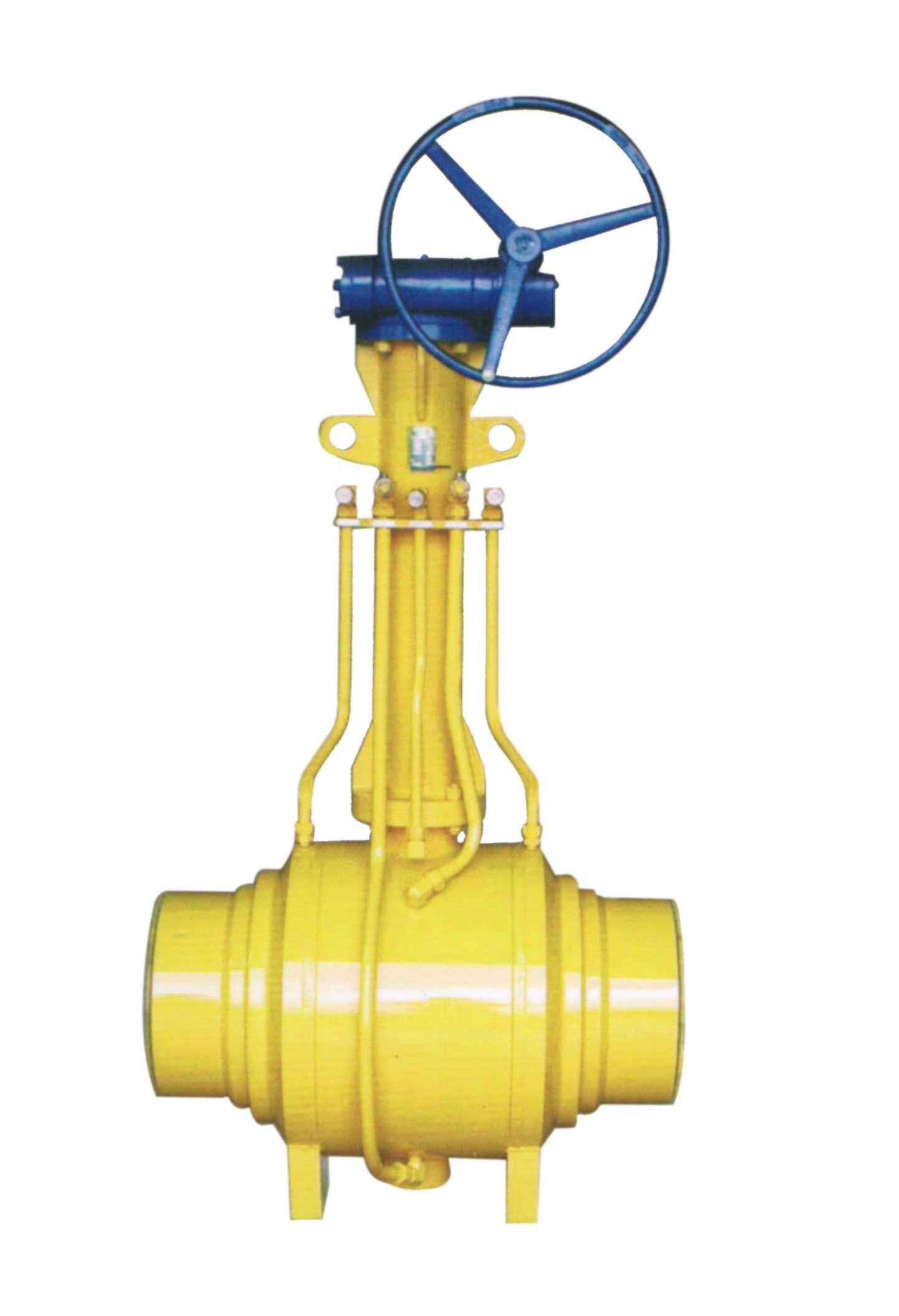

Ball Valve

Excellent shutoff design and unobstructed flow path.

Ball valves are designed and equipped with blow out proof stem, lower and stable torque, and ISO 5211 mounting surface.

Every ball valve has an independent tag-number to track the documents of materials, torque and inspection reports.

Guaranty 100% hydraulic leakage test before release.

Anti-Static design ball to stem and body.

Fire safe design, bi-directional, two-piece split body, floating type.

Specifications:

Body Connection: Flange Type

Body Shell Thickness: ASME B16.34

Mounting: ISO 5211

Design & Pressure: API 6D, API 608, ASME B16.34

Face to Face: ANSI B16.10

Inspection and Testing: API 6D, API 598

Leakage Class: ISO 5208 rate A

Flange Drilling: ASME B16.5 150LB/300LB, JIS 10K/16K

(Other flange connection please contacts with Value Valves Co., Ltd.)

*Technical information is only for reference. Value Valves Co., Ltd. reserves the right to change without previous notice.

 APPLICATIONS：

Petrochemicals Industry

Fossil & Cogeneration Power

Steel Mill

Refinery

Cryogenic

Pulp & Paper

Nuclear Power
